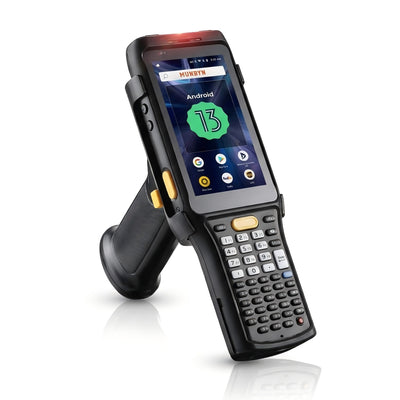

MUNBYN IPDA088P Android barcode scanner with long-range scanning capabilities, shown in black with ergonomic design.
MUNBYN IPDA088P Long-Range Barcode Scanner
$978.99

Product details

Review the key specifications before choosing the right product.

Product overview
SKU
IPDA088P-2DL-BK-US-4
Model
IPDA088P
Product Dimensions
202.0 x 72.5 x 32.0 mm / 7.95 x 2.85 x 1.26 in
Weight
370 g / 13.05 oz.(SE4710); 404 g / 14.25 oz. (SE4850)
Display Screen
4-inch high definition full display, IPS LTPS 800*480 Screen brightness: 450-500nit
Operating System
Android 13: USB Type-C, USB 3.1, OTG, extended thimble
CPU
Android 13: Qualcomm SDM6115 Octa-core, 2.0 GHz
RAM + ROM
3 GB + 32 GB (standard) / 4 GB + 64 GB
Expand Memory
Supports up to 128 GB Micro SD card
Battery Capacity
  • 6700 mAh removable main battery, 5200 mAh optional pistol battery, support QC3.0 and RTC;Built in 100mAh backup battery, supporting battery hot swap, improving reliability and ensuring user data security
  • Standby: up to 680 hours (only main battery ; WiFi: up to 560h; 4G: up to 560h)
  • Continuous use: over 12 hours (depending on user environment)
  • Charging time: 3.5 hours (charge device by standard adaptor and USB cable)

Camera
Rear 13 MP Autofocus with flash
Touch Panel
Multi-touch panel, gloves and wet hands supported
Key
Main keyboard (Optional): 27 keys / 37 keys / 47 keys; Side keys: 2 SCAN keys + 2 volume keys + 1 user-defined key
Sensor
Gravity sensor, proximity sensor, light sensor, accelerometer sensor, vibration motor
More specifications
Expand Port
1 slot for SIM card, 1 slot for TF card
Interface
USB 3.0, Type-C, OTG, extended thimble
WLAN
  • Support 802.11 a/b/g/n/ac/ax-ready/d/e/h/i/k/r/v, 2.4G/5G dual-band, IPV4,IPV6, 5G PA;
    Fast roaming: PMKID caching, 802.11r, OKC;
  • Operating Channels: 2.4G(channel 1~13), 5G(channel36,40,44,48,52,56,60,64,100,104,108,112,116,120,124,128,132, 136,140,144,149,153,157,161,165), Depends on local regulations;
  • Security and Encryption: WEP, WPA/WPA2-PSK(TKIP and AES), WAPI- PSK—EAP-TTLS,EAP-TLS, PEAP-MSCHAPv2, PEAP-LTS,PEAP-GTC, etc.

WWAN (America)
  • 2G: 850/900/1800/1900MHz
  • 3G: 850/900/1900/2100MHz
  • 4G: B2/B4/B5/B7/B8/B12/B13/B17/B28A/B28B/B38

Bluetooth
Bluetooth 5.1
GNSS
GPS/AGPS, GLONASS, BeiDou, Galileo, internal antenna
NFC
  • Frequency13.56MHz
  • ProtocolISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.
  • ChipsM1 card (S50, S70), CPU card, NFC tags, etc.
  • Range2-4 cm

2D Imager Scanner

Zebra: SE4850

1D Symbologies

UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.

2D Symbologies

PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc.

Vo-LTE
Support Vo-LTE HD video voice call
SDK Development
Android SDK Language: Java, Tool: Android Studio/Eclipse/Xamarin
Drop Specifications
Multiple 1.8 m / 5.9 ft. drops (at least 20 times) to the concrete across the operating temperature range
Operating Temperature
-20℃~50℃
Storage Temperature
-40℃~ 70℃
Environment Humidity
5% RH – 95% RH non condensing
Speaker
Support
Vibrator
Support
Microphone
2 Microphones, 1 for noise reduction
Indication
Power, charging, status indicator
Service Warranty
MUNBYN is dedicated to providing high-quality products and exceptional customer service. This product comes with a 2-year warranty against manufacturing defects for the original purchaser. For bundled product purchases, the warranty period for each individual item is governed by our Warranty Policy. To gain a complete understanding of all our warranty terms, we encourage you to visit our Warranty Policy page.
Box contents
  1. Handheld Terminal Device
  2. Adapter
  3. USB Cable
  4. Screen Protector
  5. User Manual
IPDA088P-LR warehouse scanning scene highlighting Zebra SE4850, Android 13, dual batteries and IP65 protection.

PROOF 01 /BUILT FOR WAREHOUSE WORK

Bring Data Capture to the Warehouse Floor

Keep receiving, stock checks, and picking connected with a handheld computer designed for warehouse routines. The IPDA088P-LR combines a Zebra SE4850 scanning engine with physical keys and an Android interface, letting workers capture codes and review records on the same device.

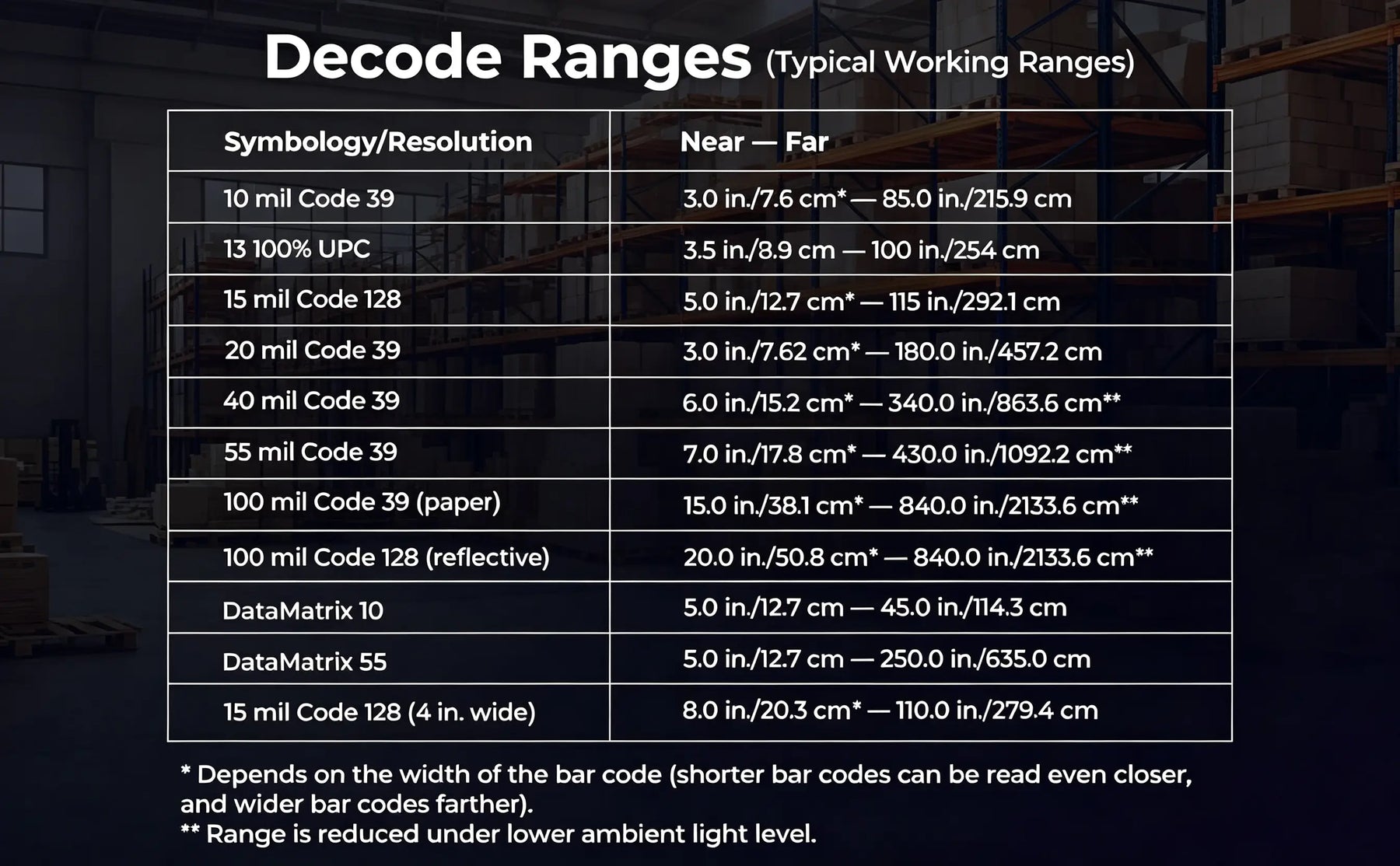

Barcode decode-range table showing how typical reading distances vary by barcode size and format.

PROOF 02 /PLAN YOUR SCANNING SETUP

Match the Range to Your Labels

Choose a scanning setup around the labels you actually use. Reading distance changes with barcode size, symbology, print quality, angle, and lighting. Test representative shelf and item labels at their working positions before deployment, rather than treating an engine's maximum range as a universal result.

Warehouse scanning comparison illustration featuring the Zebra SE4850 long-range engine and SE4750 examples.

PROOF 03 /LONG-RANGE SCANNING

Reach Shelf Labels with Less Repositioning

The Zebra SE4850 engine helps workers capture suitable shelf labels from farther away during warehouse checks. MUNBYN lists a working range of about 5 meters for this model under suitable conditions. Actual results depend on the barcode and environment, so confirm performance with your own labels.

IPDA088P-LR configuration illustration labeled Android 13 and 3GB RAM plus 32GB storage.

PROOF 04 /ANDROID 13 WORKFLOW

Keep Inventory Apps within Reach

Use Android 13 with 3GB of RAM and 32GB of storage for compatible warehouse apps and collected records. Review item information and enter updates on the handheld as you work. Confirm application requirements and test your scanning workflow before equipping a larger team.

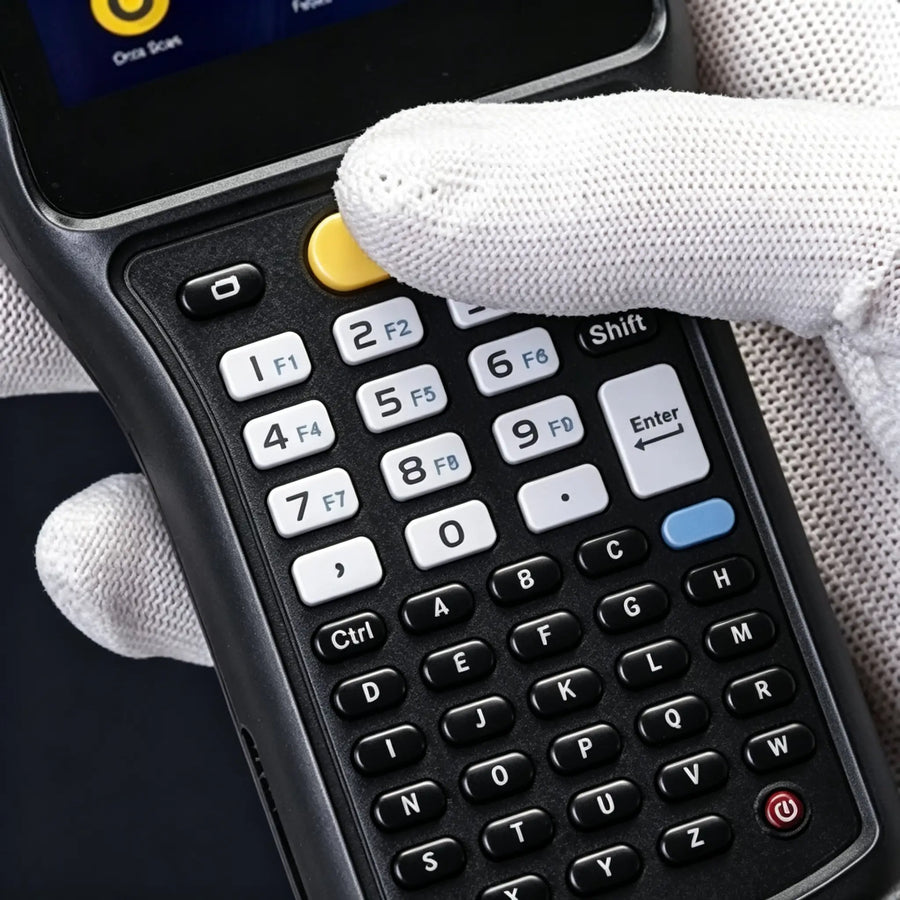

Gloved hand pressing the yellow key on the IPDA088P-LR physical keypad for warehouse data entry.

PROOF 05 /PHYSICAL KEYPAD

Enter Quantities with Gloves On

Scan a label, enter a quantity, and confirm the next step using physical keys. The keypad gives workers a tactile way to handle repeated entries while wearing gloves. Check glove fit and key access with your team so the device suits everyday picking and counting tasks.

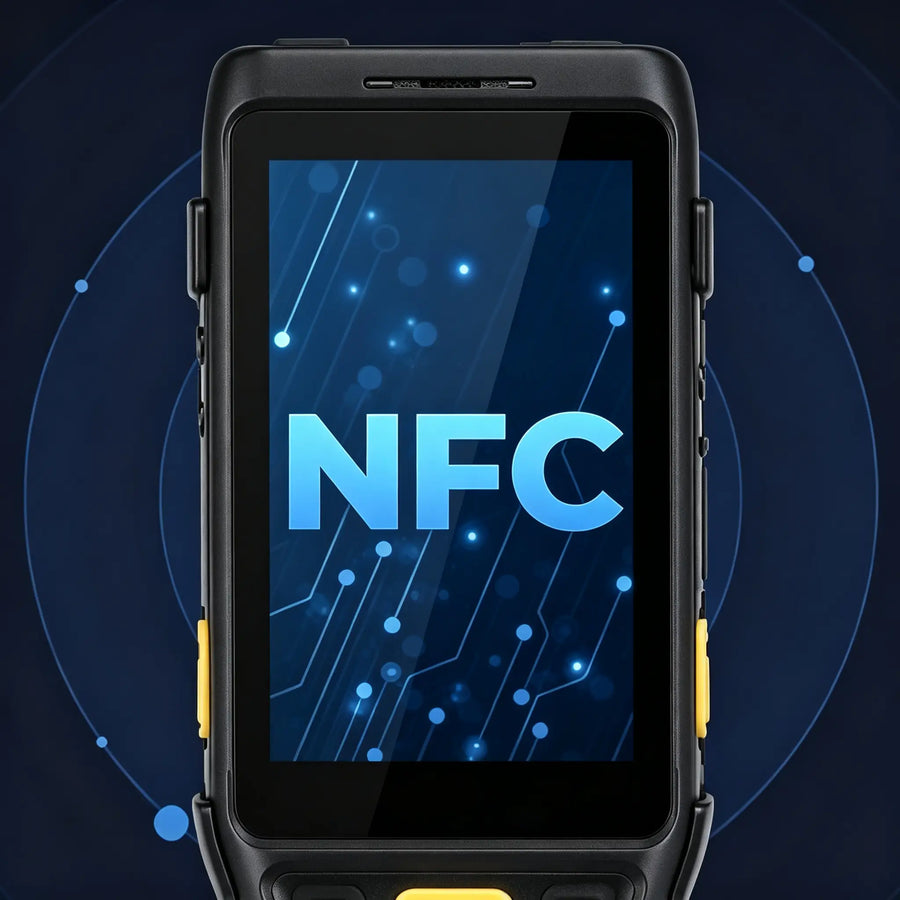

IPDA088P-LR handheld screen with an NFC graphic illustrating close-range tag and card reading.

PROOF 06 /NFC DATA CAPTURE

Read Compatible Tags at Close Range

Bring compatible NFC tags into your existing identification workflow. With 13.56MHz NFC, the IPDA088P-LR can read supported tags and cards at close range. Pair it with compatible software to capture information alongside your barcode scanning tasks on one handheld.

Download the Digital User Guide



User Manual

Download Now >>

Our Partners

Customers praised this long-range barcode scanner as a "fantastic value" with excellent warehouse performance. Reviews highlighted 10-12 feet scanning range, full-day battery life, versatility with handheld/handle modes, and durability. Many noted it costs significantly less than competitors while delivering comparable functionality and praised "excellent" customer service.

  • 5 stars: 11 (100%)
  • 4 stars: 0 (0%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
D
Dustin B.
Quality product

Our company has been using these scanners for years instead of another much pricier brand and have been satisfied with their performance and quality. Our users enjoy being able to switch between handheld or using the included handle. These are great for regular warehouse tasks with the ability to take pictures

G
Global I.
Quality product after years of use

Our company has been using these Munbyn Scanners for years and are nothing but satisfied with the quality and performance. The versatility to use them in handheld mode or to attach the gun handle (pictured) for quick scanning only adds to the value that these Scanners have added to our production processes.

P
Persimmon T.
Great handheld device

We are using this tablet for our warehouse team requiring portability, durability (wet/old env), flexibility. This unit with external keyboard allows to be mobile as well as stay functional for quick counting, picking, and putting away processes in our warehouse. We are also actively using this device in shipping/receiving area to assist logistics team.Device has smaller enough to be super mobile, but powerful to run apps for our purpose. Biggest benefit is the battery life enabling a full day usage with needing to charge. Physical keyboard (smaller keys and not QWERTY) is added benefit in case of quick data entry. Barcode reading is super efficient, reaching almost 10-12 feet with accuracy. Screen is brighter and responsive to the touch stroke, and buttons are responsive and well placed. We are happy with the performance of the device and are considering to purchase additional units for the rest of the warehouse crew. Half of the cost of Zebra solutions we originally looked at, I would highly recommend this product for both price advantage as well as functionality.

R
Ray S.
Great scanners

We've had great success with these units. The scan engine works great for distance in our warehouses. These scanners are a fantastic value compared to the big brands.

S
Salvatore L.
Cheaper And Effective!

Excellent device. The cost of one of these scanners alone i could get 4 for the price of one the "big" guys. This does everything the other guys do and run all the apps we need for our business.

J
Joe T.
Very pleased!

We are very happy with these scanners. They perform well in our warehouse environment and are priced fairly. Great customer service, too.

J
Joel K.
Long Range Scanning with precision laser

This scanner has a very long range scanning capabilities with a very good laser light.

E
Edward P.
Look no further if you want a quality long-range barcode scanner

My company has purchased 3 of these and we will be purchasing more. Our warehouse staff loves them, especially the long range. The build and overall feel of the product is one of very high quality. Equally important, the support the company provides is EXCELLENT. They spent considerable time working with me on an issue I was having (and the issue was with my specific configuration, not the device itself). This is a quality product, highly recommended!

W
William R.
Highly recommend

I have purchased almost 20 Munbyn devices for my company. They are all working great and best of all, when you have a question or problem, the Munbyn customer service team is excellent!

J
Jennifer
Edited to reflect changes they will make

Edit (2023-07-17) - The vendor called me and asked what changes they could make to this device to be more competitive to Zebra. They told me that they will make the changes in their next revision of this gun. This gun is good if you are going from having nothing to having something to scan barcodes. I am impressed that they take customer feedback so seriously.

A
Ana
Exceeded my expectations in every way ! Great product!!!

This long range android barcode scanner is a game changer! As a business owner, I can't stress enough how important it is to have a reliable and efficient scanner. This device has exceeded my expectations in every way. The long range scanning capability allows me to easily scan barcodes from a distance, saving me time and hassle. The scanner is also incredibly accurate, quickly recognizing even the most complex barcodes. It's compatible with my android software, making it easy to use on the go. I highly recommend this long range android barcode scanner to anyone in need of a top-quality scanning solution. It's an investment that will pay off in spades!

FAQs

Please read our FAQs page to find out more.

What jobs is the MUNBYN IPDA088P long-range barcode scanner designed for?

The IPDA088P-LR barcode scanner is designed for high-rack warehouses, distribution centers, forklift scanning, receiving, shipping, and inventory work where labels may be several feet away. Its physical keys and pistol-style form support repeated scanning and data entry.

How far can the IPDA088P Zebra SE4850 scan?

Its Zebra SE4850 engine can read suitable barcodes from up to about 5 m (16 ft). Maximum distance varies with barcode size, symbology, print quality, angle, and lighting.

Which barcode types can the IPDA088P long-range barcode scanner read?

It supports common 1D formats such as UPC/EAN, Code 128, and Code 39, plus 2D formats including PDF417, Data Matrix, QR, Aztec, and MaxiCode. This coverage fits most warehouse, logistics, and retail labels.

Can the IPDA088P long-range scanner run inventory apps?

Yes. It runs Android 13 and supports widely used inventory and warehouse apps such as inFlow, Zoho, Sortly, Odoo, and Orca Scan. App compatibility should be confirmed before a large fleet rollout.

What connectivity does the IPDA088P-LR support?

This long-range barcode scanner supports dual-band Wi-Fi, 4G cellular data, Bluetooth 5.1, and GPS. These connections allow scans to sync across warehouses, yards, vehicles, and mobile workflows.

How does battery hot swap work on the IPDA088P long-range scanner?

The removable 6700mAh main battery is supported by a built-in 100mAh backup battery, so the main battery can be replaced without immediately losing active data. The main battery is rated for more than 12 hours of continuous use depending on conditions.

Is the MUNBYN IPDA088P-LR rugged enough for warehouse use?

Yes. It is IP65 rated against dust and water exposure and tested for repeated 1.8 m (5.9 ft) drops onto concrete. The touch panel also supports glove and wet-hand operation.

What should I check if the IPDA088P-LR will not charge?

Use the original charger and cable, inspect the USB-C port, and make sure the removable battery is seated correctly. Stop using any damaged charging accessory and contact MUNBYN support if the problem continues.
